Name:TEFA01 (TEFA02,TEFA12,TEFA23)

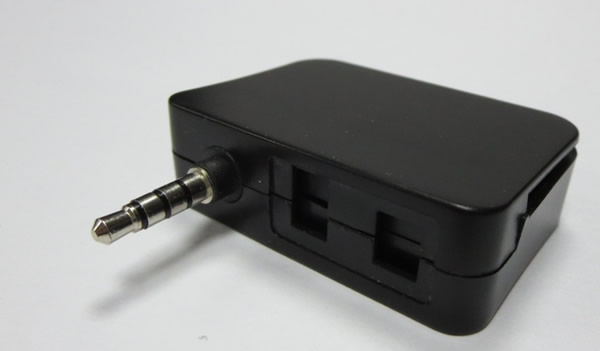

 TEFA01 (TEFA02M, TEFA12, TEFA23)  EncryptedMobileStrip Reader


Product Description


    This product is an innovative device of mobile POS with slim size, low cost, high security, high

reliability. There is no need to have battery. It can settle the payment transaction through swiping

bank card or credit card at anytime and anywhere.


1. Slim size: light and slim size for high portability

2. Reduce investment: The user may use own mobile phone to complete the transaction. No need to invest for the heavier POS or ePOS

3. High security: Data is encrypted before transmitted to the mobile phone. Avoid the possibility of being stolen by trojan horses.

4. High reliability: Embedded professional decoder IC speed up the decoding. High swiping performance

5. Ultra low power consumption: Peak operating current <1mA, which could be the most lowest power consumption in the similar products. No extra button cell is required. Current comes from the audio jack of the mobile phone or tablet PC

6. No Electrolytic Capacitor: No additional Electrolytic Capacitor is required to charged up the device. Thus, reduce BOM cost, volume and swiping time .

TEF (HK) CO., LIMITED

Specification

Model

TEFA01 (Single track: 1st track)TEFA02 (Single track: 2nd track)

TEFA12 (Dual tracks: 1, 2 track)TEFA23 (Dual tracks: 2,3 track)

Power Source

Power up by Audio jack of Mobile phone

Connection to mobile

Plug-in 4 pins3.5mmaudio jack

cards

Magnetic card. e.g. Credit cards, debit cards, membership cards

Decoding format

Build-in Hardware decoder

Swiping speed

3 - 70 IPS (7.6 -177.8 cm/s)

Swiping direction

Dual direction

Swiping time

500,000 times

Encryption

Swiped data encrypted before sent to mobile phone

Encryption method

Optional: 3DES (TDES)/AES. Support FIXED KEY or DUKPT  key managemen

Encryption spped

<200ms (complete data encryption from all tracks)

Peak current

IOS, Android system

Peak current

<1mA

Measurement

45mm x31mmx13mm

Weight

18g
