Name:TEFB12,TEFB23

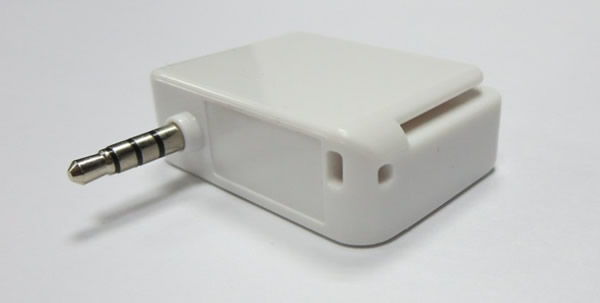

 TEFB12, TEFB23 Encrypted MobileStrip Reader


Product Description

This product is an innovative device of mobile POS with slim size, low cost, high security, high reliability and high compatibility. It can settle the payment transaction through swiping bank card or credit card through the smart phones, MID at anytime and anywhere.

1.        Slim size: light and slim size for high portability

2.        Reduce investment: The user may use own mobile phone to complete the transaction. No need to invest for the heavier POS or ePOS

3.        High security: Data is encrypted before transmitted to the mobile phone. Avoid the possibility of being stolen by Trojan horses.

4.        High reliability: Embedded professional decoder IC speed up the decoding. High swiping performance

5.        Ultra low power consumption: Power up by button cell. Peak operating current <1mA, which could be the lowest power consumption in the similar products.

6.         High compatibility: Support bidirectional communication between phone and device. Compatible for domestic and imported mobile phones. Can support 90% or above smart phones.

TEF (HK) CO., LIMITED


Specification

Model

TEFB12 (Dual tracks: 1, 2 track)

TEFB23 (Dual tracks: 2,3 track)

Power Source

Power up by embedded button cell (Depend on customer: Can be powered up by Audio jack of Mobile phone)

Connection to mobile

Plug-in 4 pins3.5mmaudio jack

Cards

Magnetic card. e.g. Credit cards, debit cards, membership cards

Decoder type

Build-in Hardware decoder

Battery life

20,000 times for normal swiping.

Battery standby time

5 years

Swiping speed

3 - 70 IPS  (7.6 -177.8 cm/s)

Swiping direction

Dual direction

Swiping time

500,000 times

Encryption

Swiped data encrypted before sent to mobile phone

Encryption method

Optional: 3DES (TDES)/AES. Support FIXED KEY or DUKPT key management

Encryption spped

<200ms (complete data encryption from all tracks)

Supporting system

iOS, Android system

Peak current

<1mA

Operating Temperature

-20 °C to 60°C

Measurement

41.7mm x30mmx13.7mm

Weight

18g
